0x01 javaAgent 介绍

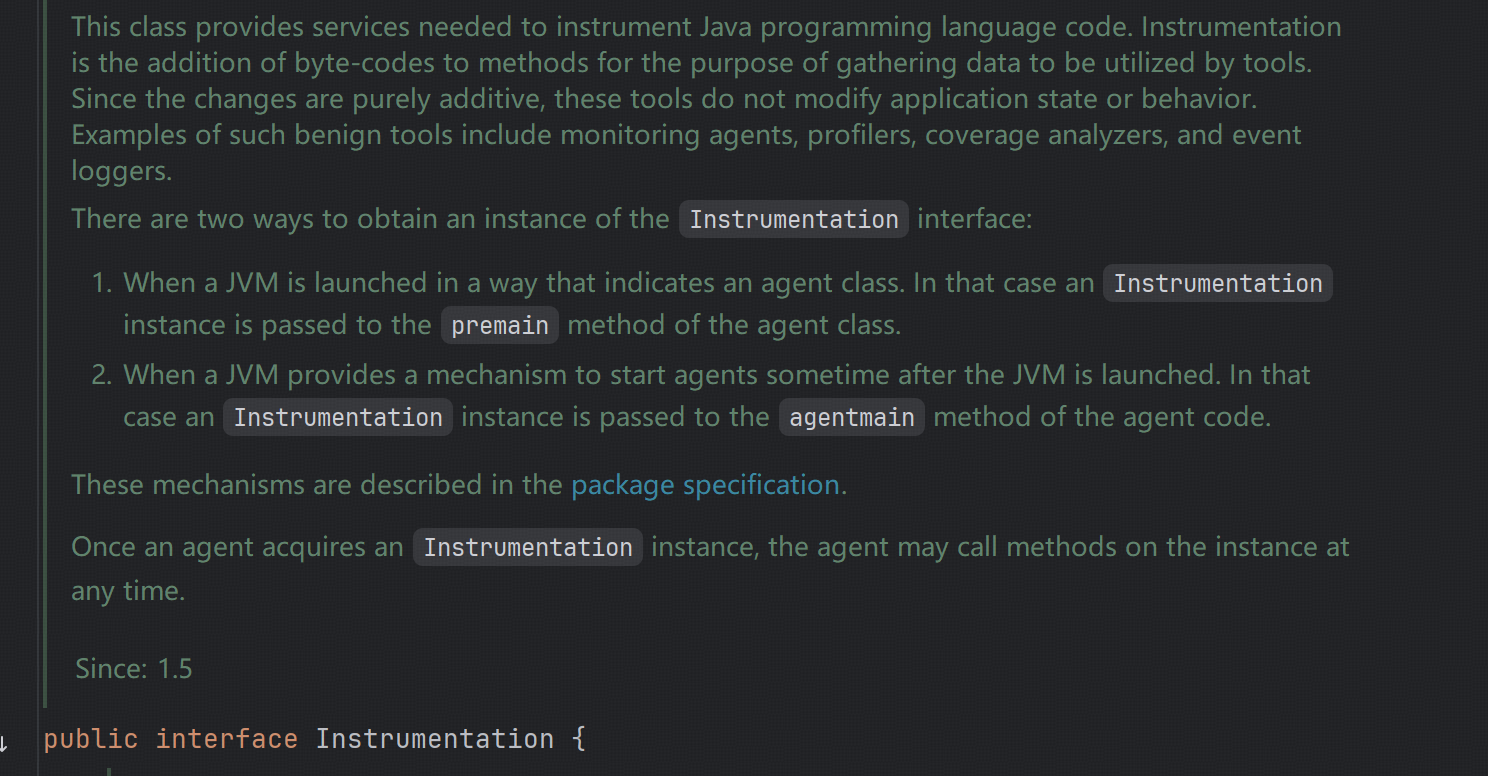

java agent 存在两种模式，premain agentmain , 前者用于在类加载进 jvm 之前拦截并修改类的字节码，后者允许在目标 java 程序运行时将 agent 注入进去。

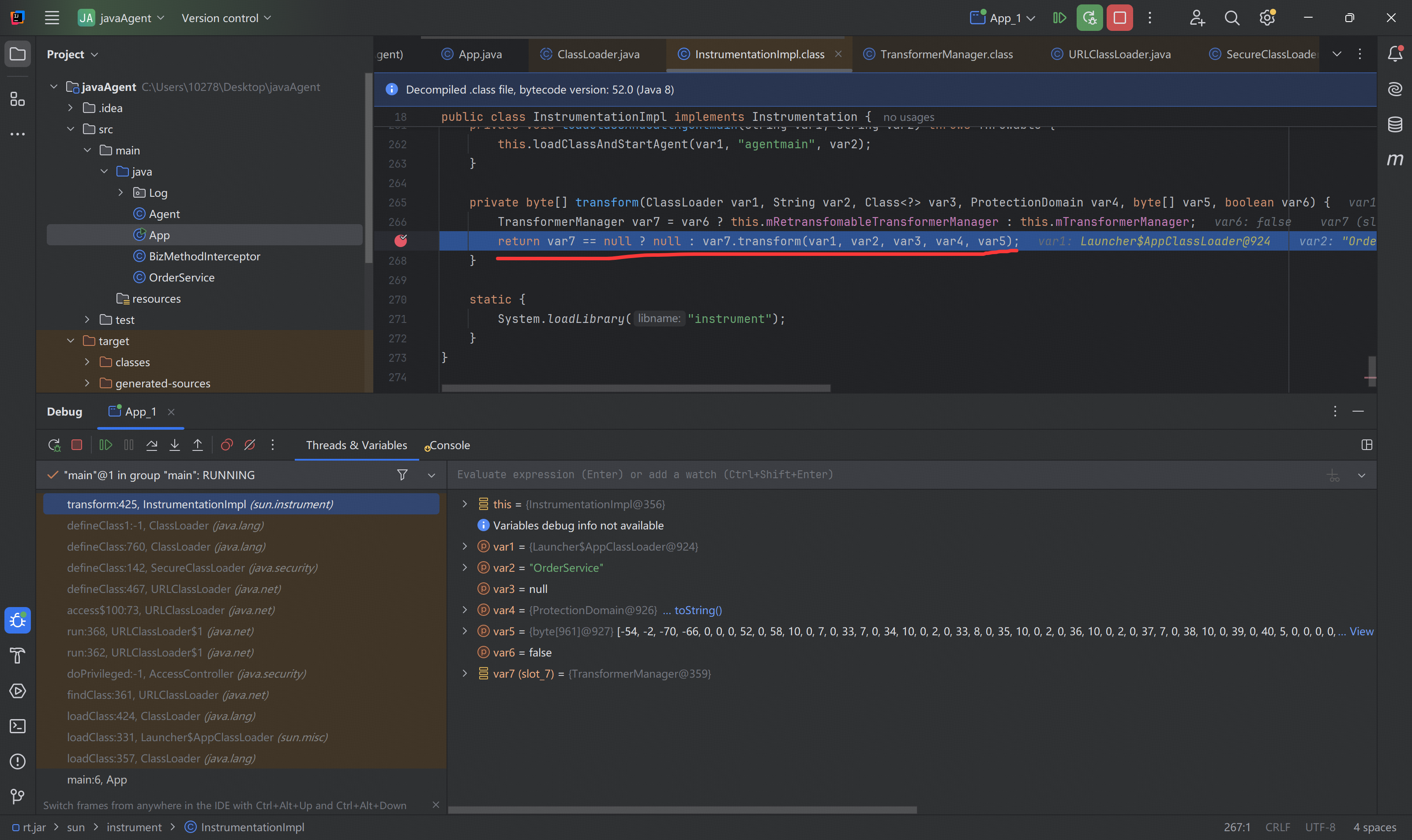

具体原理，可以打断点观察，在初始化 OrderService 类时会有这样的一个方法调用， var7.transform() ，如果 var7 == null 则返回 null ，在 java Agent 规范中，如果没有修改字节码则返回 null ，如果返回原始字节码， JVM 需要重新校验这个字节码判断有没有修改，造成无效解析和拷贝。

看上一行代码 ， var6 应该是表示这个是否是重加载吧，如果 false ，则 var7 = this.mTransformerManager ，继续往上查看 TransformerManager 类，可以存放多个 ClassFileTransformer ，也就是可以注册多个 transformer 进行链式处理。

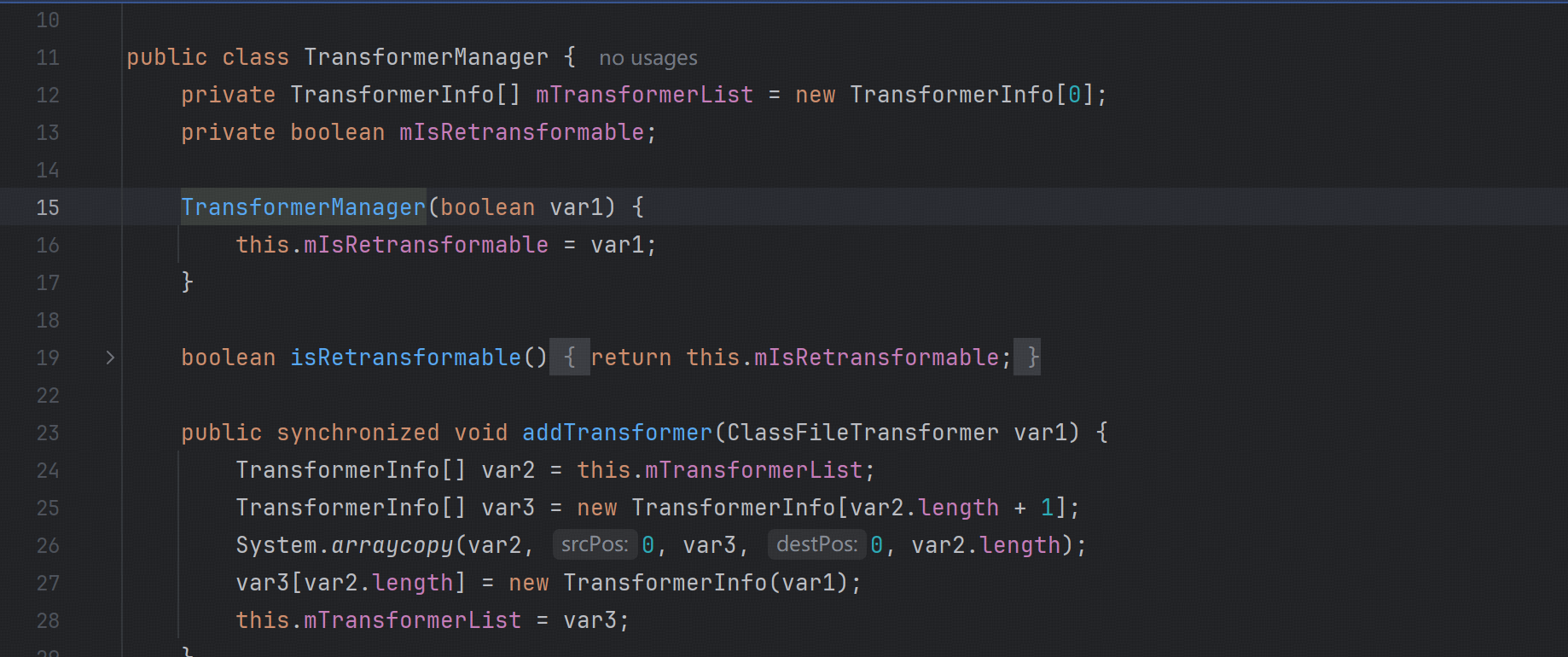

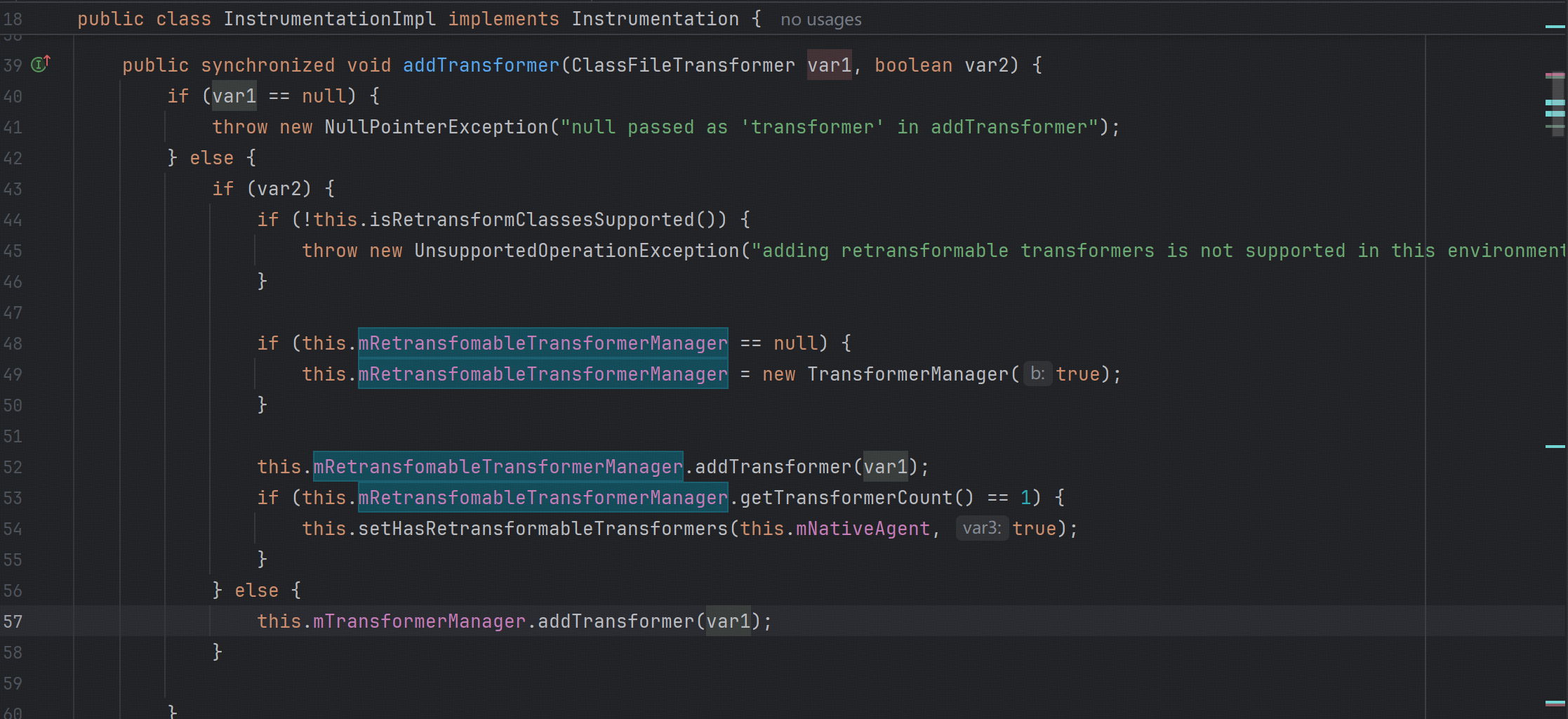

Instrumention 接口的 addTransformer 方法就是调用 mTransformerManager 的 addTransformer 方法。

所以 var7.transform() 方法就是调用了我们注册的 ClassFileTransformer 类的 transform 方法。

打包配置：META-INF/MANIFEST.MF 指定 Premain-Class: 代理类全路径

Manifest-Version: 1.0
Premain-Class: Agent
Can-Redefine-Classes: true
Can-Retransform-Classes: true

执行： 通过命令行参数 -javaagent:agent.jar

java -javaagent:agent.jar=agentArgs -jar app.jar

例如，统计某个方法的执行耗时。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <artifactId>javaAgent</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy</artifactId>
            <version>1.14.12</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
                <version>3.3.0</version>
                <configuration>
                    <archive>
                        <manifestEntries>
                            <Premain-Class>Agent</Premain-Class>
                            <Agent-Class>Agent</Agent-Class>
                            <Can-Redefine-Classes>true</Can-Redefine-Classes>
                            <Can-Retransform-Classes>true</Can-Retransform-Classes>
                        </manifestEntries>
                    </archive>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

入口类 拦截器类

import net.bytebuddy.agent.builder.AgentBuilder;
import net.bytebuddy.implementation.MethodDelegation;
import net.bytebuddy.matcher.ElementMatchers;
import java.lang.instrument.Instrumentation;
import Log.log;

public class Agent {

    public static void premain(String agentArgs, Instrumentation inst) {
        log.info("ByteBuddy Premain Agent 开始注入");

        new AgentBuilder.Default()
                .type(ElementMatchers.nameStartsWith("OrderService"))
                .transform((builder, typeDescription, classLoader, module, protectionDomain) 			  	-> builder.method(ElementMatchers.named("tackleOrder")
                                .and(ElementMatchers.isPublic()))
                        .intercept(MethodDelegation.to(BizMethodInterceptor.class))
                )
                .installOn(inst);

        log.info("ByteBuddy Premain Agent 注入完成 ");
        //.with(AgentBuilder.Listener.StreamWriting.toSystemOut())
    }
}

import net.bytebuddy.implementation.bind.annotation.Origin;
import net.bytebuddy.implementation.bind.annotation.RuntimeType;
import net.bytebuddy.implementation.bind.annotation.SuperCall;
import java.lang.reflect.Method;
import java.util.concurrent.Callable;
import Log.log;

public class BizMethodInterceptor {

    @RuntimeType
    public static Object intercept(
            @Origin Method method,
            @SuperCall Callable<?> callable
    ) throws Exception {

        long startTime = System.nanoTime();
        log.info("准备执行方法: " + method.getName());

        try {
            Object result = callable.call();
            return result;

        } catch (Exception e) {
            log.info("方法执行出错: " + e.getMessage());
            throw e;
        } finally {
            long endTime = System.nanoTime();
            log.info("方法 " + method.getName() + " 执行完毕，耗时: " + (endTime - startTime) / 1_000_000 + "ms");
        }
    }
}

被监控类

import Log.log;
public class App {
    public static void main(String[] args) {
        log.info(" 应用程序启动...");
        OrderService service = new OrderService();
        String result = service.tackleOrder("order_11111");
        log.info(" 收到业务返回值: " + result);
    }
}

import Log.log;
public class OrderService {
    public String tackleOrder(String orderId) {
        log.info(" 正在处理订单: " + orderId);
        try {
            Thread.sleep(200);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return "successfully tackle order";
    }
}

mvn clean package 打包 Agent.jar

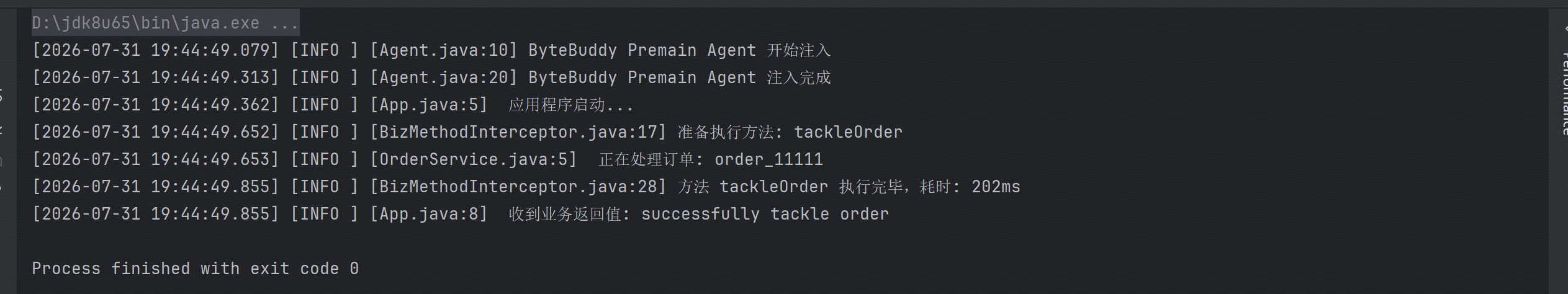

打开 App 类，edit configurations ，add VM options : -javaagent:target/javaAgent-1.0-SNAPSHOT.jar

如果使用 ASM 修改字节码更清晰一些。buddy byte 有一定的封装。

类加载前可以修改字节码，因此 RASP （运行时自我阻断）可以通过添加检查字节码对输入参数和 sink 函数调用进行实时检测阻断。

0x02 raspDemo

对于生产环境下的 RASP ，需要 Hook 多个危险方法，例如 Runtime ProcessBuilder ObjectInputStream 等

分层：Transformer → Hook Handler/Protector → Rule/Taint Engine → Report/Block。

还是从入口类 Agent 开始，实现如下

import java.io.IOException;
import java.lang.instrument.Instrumentation;
import java.lang.instrument.UnmodifiableClassException;
import java.util.ArrayList;
import java.util.List;
import java.util.jar.JarFile;

import Log.log;

public class Agent {
    public static void premain(String agentArgs, Instrumentation inst, String mode) {
        init(agentArgs, inst, "premain");
    }

    public static void agentmain(String agentArgs, Instrumentation inst, String mode) throws UnmodifiableClassException {
        init(agentArgs, inst, "agentmain");

        //attach and transform loaded classes
        List<Class<?>> targetClasses = new ArrayList<Class<?>>();
        for (Class<?> targetClass : inst.getAllLoadedClasses()) {
            String className = targetClass.getName();
            if (!inst.isModifiableClass(targetClass)) {
                continue;
            }

            if ("java.lang.Thread".equals(className)
                    || "java.lang.ProcessBuilder".equals(className)
                    || "java.io.ObjectInputStream".equals(className)
                    || "java.lang.Class".equals(className)) {
                targetClasses.add(targetClass);
            }
        }
        if (!targetClasses.isEmpty()) {
            Class<?>[] targets = targetClasses.toArray(new Class<?>[0]);
            inst.retransformClasses(targets);
            log.info("rasp agent successfully retransform " + targets.length + " classes");
        }

    }

    private static void init(String agentArgs, Instrumentation inst, String mode) {
        appendSelfToBootstrap(inst);
        inst.addTransformer(new RaspTransformer(),true);
        log.info("rasp current mode: ", mode);
    }

    public static void appendSelfToBootstrap(Instrumentation inst) {
        try {
            String jarPath = Agent.class.getProtectionDomain().getCodeSource().getLocation().getPath();
            inst.appendToBootstrapClassLoaderSearch(new JarFile(jarPath));
            log.info("success append self to bootstrap classpath");
        } catch (IOException e) {
            log.error("failed append self to bootstrap classpath", e);
            throw new RuntimeException(e);
        }
    }
}

然后实现我们注册的 RaspTransformer 类

import java.lang.instrument.ClassFileTransformer;
import java.security.ProtectionDomain;
import Log.log;
import Transformer.*;

public class RaspTransformer implements ClassFileTransformer {
    @Override
    public byte[] transform(ClassLoader loader, String className, Class<?> clazz, ProtectionDomain protectionDomain, byte[] classFileBuffer) {
        if (className == null || classFileBuffer == null) {
            return null;
        }

        switch (className) {
            case "java/lang/ProcessBuilder":
                log.info("rasp agent successfully block ProcessBuilder,classLodaer = " + loader);
                return ProcessBuilderTransformer.transform(classFileBuffer);
            case "java/io/ObjectInputStream":
                log.info("rasp agent successfully block ObjectInputStream,classLodaer = " + loader);
                return ObjectInputStreamTransformer.transform(classFileBuffer);
            case "java/lang/Class":
                log.info("rasp agent successfully block Class,classLodaer = " + loader);
                return ClassTransformer.transform(classFileBuffer);
            case "java/lang/Thread":
                log.info("rasp agent successfully block Thread,classLodaer = " + loader);
                return ThreadTransformer.transform(classFileBuffer);
        }

        return null;
    }
}

对于不同的可能导致危险的类，我们使用不同的 xxxxTransformer 类来实现 transform 方法，做不同的处理，这里举例 java/lang/Runtime ， （后续项目删除了该类）

package Transformer;

import Log.log;
import org.objectweb.asm.*;
import org.objectweb.asm.commons.AdviceAdapter;

/**
 * 针对 java.lang.Runtime
 */
public class RuntimeTransformer {

    public static byte[] transform(byte[] classfileBuffer) {
        try {
            ClassReader cr = new ClassReader(classfileBuffer);
            ClassWriter cw = new SafeClassWriter(cr, ClassWriter.COMPUTE_MAXS);
            ClassVisitor cv = new RuntimeClassVisitor(Opcodes.ASM9, cw);
            cr.accept(cv, ClassReader.EXPAND_FRAMES);
            return cw.toByteArray();
        } catch (Exception e) {
            log.error("RuntimeTransformer ASM 转换失败: " + e.getMessage(), e);
            return null;
        }
    }

    private static class RuntimeClassVisitor extends ClassVisitor {
        public RuntimeClassVisitor(int api, ClassVisitor classVisitor) {
            super(api, classVisitor);
        }

        @Override
        public MethodVisitor visitMethod(int access, String name, String descriptor, String signature, String[] exceptions) {
            MethodVisitor mv = super.visitMethod(access, name, descriptor, signature, exceptions);
            if ("exec".equals(name)) {
                boolean isStringArray = descriptor.startsWith("([Ljava/lang/String;");
                return new ExecMethodAdvice(api, mv, access, name, descriptor, isStringArray);
            }
            return mv;
        }
    }

    private static class ExecMethodAdvice extends AdviceAdapter {
        private final boolean isStringArray;

        protected ExecMethodAdvice(int api, MethodVisitor methodVisitor, int access, String name, String descriptor, boolean isStringArray) {
            super(api, methodVisitor, access, name, descriptor);
            this.isStringArray = isStringArray;
        }

        @Override

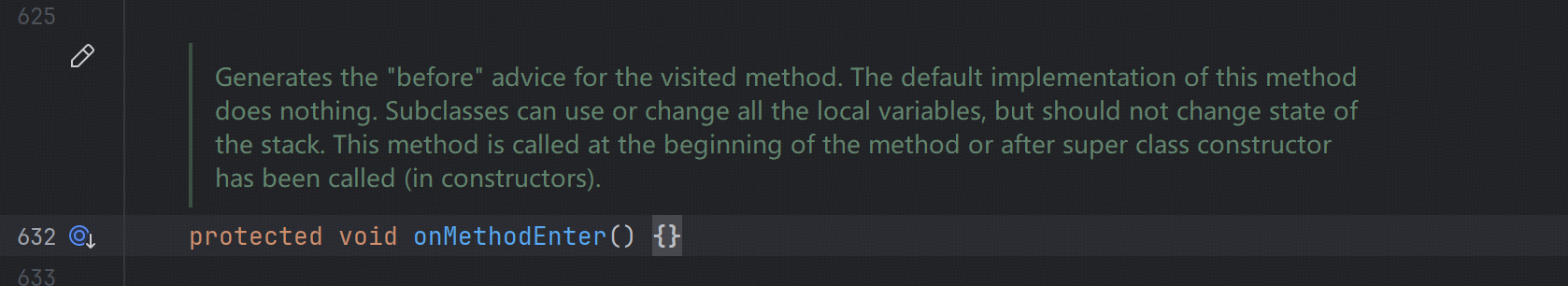

        protected void onMethodEnter() {
            if (isStringArray) {
                mv.visitLdcInsn(" ");
                mv.visitVarInsn(Opcodes.ALOAD, 1);
                mv.visitMethodInsn(Opcodes.INVOKESTATIC,
                        "java/lang/String", "join",
                        "(Ljava/lang/CharSequence;[Ljava/lang/CharSequence;)Ljava/lang/String;",
                        false);
            } else {
                mv.visitVarInsn(Opcodes.ALOAD, 1);
            }
            mv.visitMethodInsn(Opcodes.INVOKESTATIC,
                    "Transformer/HookHandler", "onRuntimeExec",
                    "(Ljava/lang/String;)V", false);
        }
    }
}

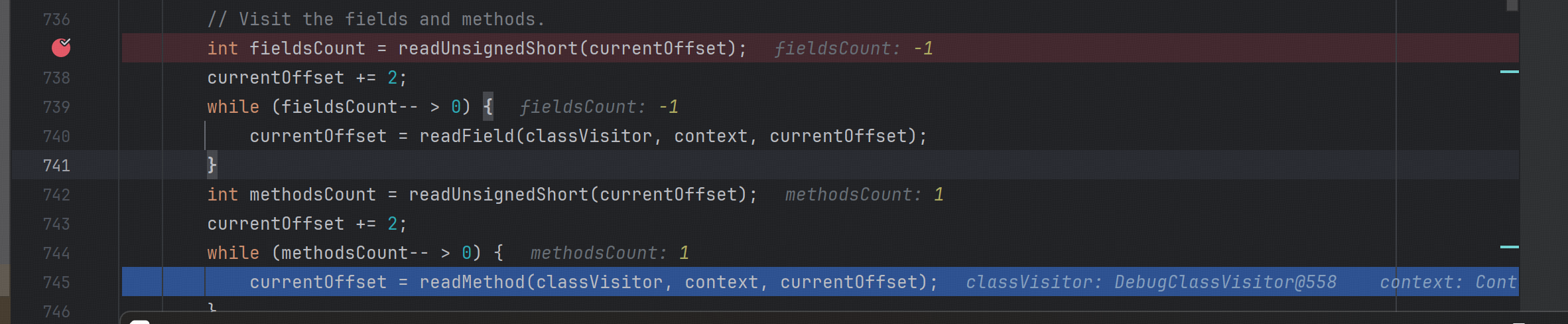

这里的 ClassReader 类似一个字节码读取流，调用 cr.accept() 方法，逐字节扫描，类似流式处理？这个过程中，每次读到一个结构，比如 className field Method 会调用 ClassVisitor 去处理

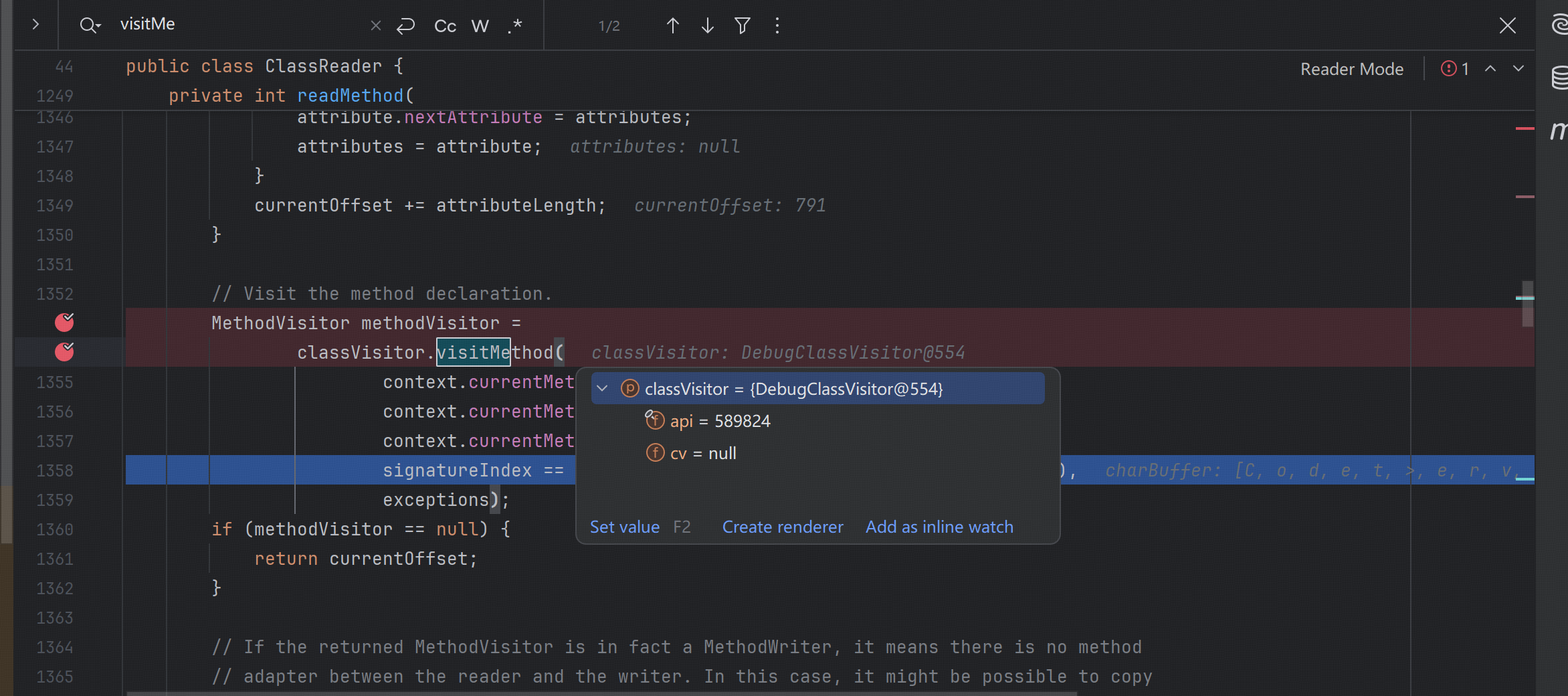

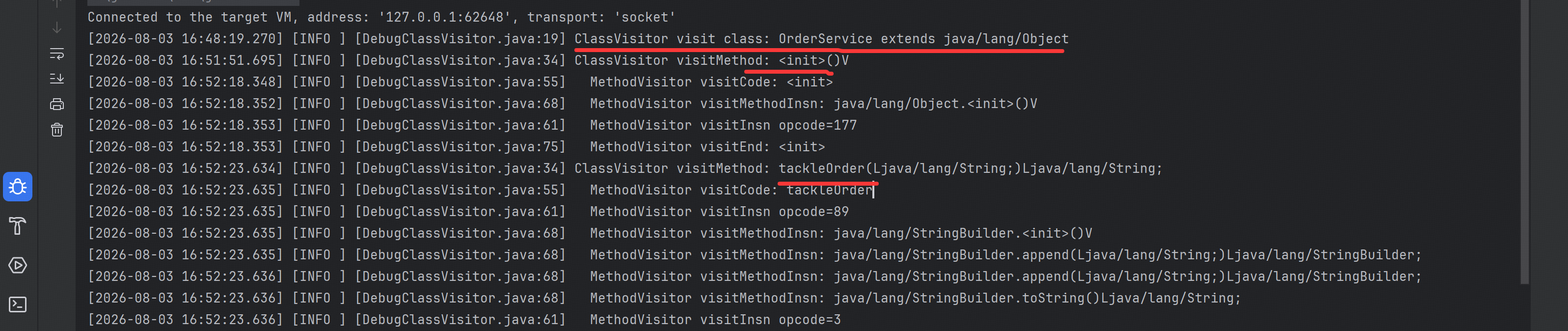

写调试类打断点跟进，

package debug;

import org.objectweb.asm.ClassReader;
import Log.log;
/**
 * 使用 ClassReader 读取 OrderService 的字节码
 * 调试 ClassReader 的流式扫描过程
 */
public class DebugEntry {

    public static void main(String[] args) throws Exception {

        ClassReader cr = new ClassReader("OrderService");
        DebugClassVisitor visitor = new DebugClassVisitor();
        cr.accept(visitor, ClassReader.SKIP_FRAMES);
        log.info("扫描完成");
    }
}

package debug;
import Log.log;
import org.objectweb.asm.*;

public class DebugClassVisitor extends ClassVisitor {

    public DebugClassVisitor() {
        super(Opcodes.ASM9);
    }

    @Override
    public void visit(int version, int access, String name,
                      String signature, String superName, String[] interfaces) {
        log.info("ClassVisitor visit class: " + name
                + " extends " + superName);
        super.visit(version, access, name, signature, superName, interfaces);
    }

    @Override
    public FieldVisitor visitField(int access, String name, String descriptor,
                                   String signature, Object value) {
        log.info("ClassVisitor visitField: " + name + " " + descriptor);
        return super.visitField(access, name, descriptor, signature, value);
    }

    @Override
    public MethodVisitor visitMethod(int access, String name, String descriptor,
                                     String signature, String[] exceptions) {
        log.info("ClassVisitor visitMethod: " + name + descriptor);
        MethodVisitor mv = super.visitMethod(access, name, descriptor, signature, exceptions);
        return new DebugMethodVisitor(mv, name);
    }

    @Override
    public void visitEnd() {
        log.info("ClassVisitor visitEnd");
        super.visitEnd();
    }

    static class DebugMethodVisitor extends MethodVisitor {
        private final String methodName;

        DebugMethodVisitor(MethodVisitor mv, String methodName) {
            super(Opcodes.ASM9, mv);
            this.methodName = methodName;
        }

        @Override
        public void visitCode() {
            log.info("  MethodVisitor visitCode: " + methodName);
            super.visitCode();
        }

        @Override
        public void visitInsn(int opcode) {
            log.info("  MethodVisitor visitInsn opcode=" + opcode);
            super.visitInsn(opcode);
        }

        @Override
        public void visitMethodInsn(int opcode, String owner, String name,
                                    String descriptor, boolean isInterface) {
            log.info("  MethodVisitor visitMethodInsn: "
                    + owner + "." + name + descriptor);
            super.visitMethodInsn(opcode, owner, name, descriptor, isInterface);
        }

        @Override
        public void visitEnd() {
            log.info("  MethodVisitor visitEnd: " + methodName);
            super.visitEnd();
        }
    }
}

跟进 readMethod 方法，后续调试太麻烦了，来回倒退前进，于是转向打标， cr.accept 流式处理字节流，处理到字段 field 方法 method 会触发 visitField visitMethod 等方法

classVisitor 为 cv ，其 visitMtthod 方法可以重写用来匹配要 hook 的方法。匹配到 hook 的方法之后，接下来如何修改字节码

public MethodVisitor visitMethod(int access, String name, String descriptor, String signature, String[] exceptions) {
    MethodVisitor mv = super.visitMethod(access, name, descriptor, signature, exceptions);
    if ("start".equals(name) && "()Ljava/lang/Process;".equals(descriptor)) {
        return new StartMethodAdvice(api, mv, access, name, descriptor);
    }
    return mv;
}

asm 提供了 AdviceAdapter ，存在该方法 onMethodEnter()

写 MethodAdvice ，重写其 onMethodEnter 方法，在方法开头嵌入要执行的字节码，至此实现了简易的 rasp demo

private static class StartMethodAdvice extends AdviceAdapter {
    protected StartMethodAdvice(int api, MethodVisitor methodVisitor, int access, String name, String descriptor) {
        super(api, methodVisitor, access, name, descriptor);
    }

    @Override
    protected void onMethodEnter() {
        mv.visitVarInsn(Opcodes.ALOAD, 0);
        mv.visitMethodInsn(Opcodes.INVOKEVIRTUAL, "java/lang/ProcessBuilder", "command", "()Ljava/util/List;", false);
        mv.visitMethodInsn(Opcodes.INVOKESTATIC, "java/lang/String", "valueOf", "(Ljava/lang/Object;)Ljava/lang/String;", false);
        mv.visitMethodInsn(Opcodes.INVOKESTATIC, "Transformer/HookHandler", "onProcessBuilderStart", "(Ljava/lang/String;)V", false);
    }
}

重写方法 onProcessBuilderStart 做最后的处理 --》 是否拦截

public static void onProcessImplStart(String[] cmdarray) {
    if (cmdarray == null || cmdarray.length == 0) return;
    String command = String.join(" ", cmdarray);
    onProcessImplStart(command);
}

public static void onProcessImplStart(String command) {
    // 防止死循环
    if (Boolean.TRUE.equals(IN_HOOK.get())) return;
    IN_HOOK.set(true);
    try {
        boolean isDangerous = isDangerousCommand(command);
        String source = HttpContext.isInHttpRequest() ? "HTTP" : "INTERNAL";
        if (isDangerous) {
            if ("HTTP".equals(source)) {
                // HTTP 请求触发的危险命令执行：来源于外部，拦截
                log.warn("RASP 拦截 java.lang.ProcessImpl#start 危险进程: " + command);
                recordEvent("RCE_PROCESS_BUILDER", "java.lang.ProcessImpl", "start", command, true, source);
                throw new SecurityException("RASP 拦截到危险进程启动: " + command);
            } else {
                log.warn("RASP 探测到 java.lang.ProcessImpl#start 但来自应用内部，放行观察: " + command);
                recordEvent("RCE_PROCESS_BUILDER", "java.lang.ProcessImpl", "start", command, false, source);
            }
        } else {
            log.info("RASP 判定 java.lang.ProcessImpl#start 安全并放行: " + command);
            recordEvent("RCE_PROCESS_BUILDER", "java.lang.ProcessImpl", "start", command, false, source);
        }
    } finally {
        IN_HOOK.set(false);
    }
}

0x03 rasp

上面是一个 rasp-demo ，对其进行一些优化，例如系统内部执行的一些 ping 127.0.0.1 类似这样的无害指令，正常情况不应该被拦截，但是来自外部的，例如来自 HTTP 请求的，应该拦截，用户不该有执行代码的能力，只能有输入数据的能力。 因此可以 hook 一些 HTTP 入口，例如 HttpServlet#service(ServletRequest, ServletResponse) 、 sun.net.httpserver.ServerImpl$Exchange$LinkHandler#handle(HttpExchange)

@Override
protected void onMethodEnter() {
    mv.visitMethodInsn(Opcodes.INVOKESTATIC, "Transformer/HttpContext",
            "enterHttpRequest", "()V", false);
}

@Override
protected void onMethodExit(int opcode) {
    mv.visitMethodInsn(Opcodes.INVOKESTATIC, "Transformer/HttpContext",
            "exitHttpRequest", "()V", false);
}

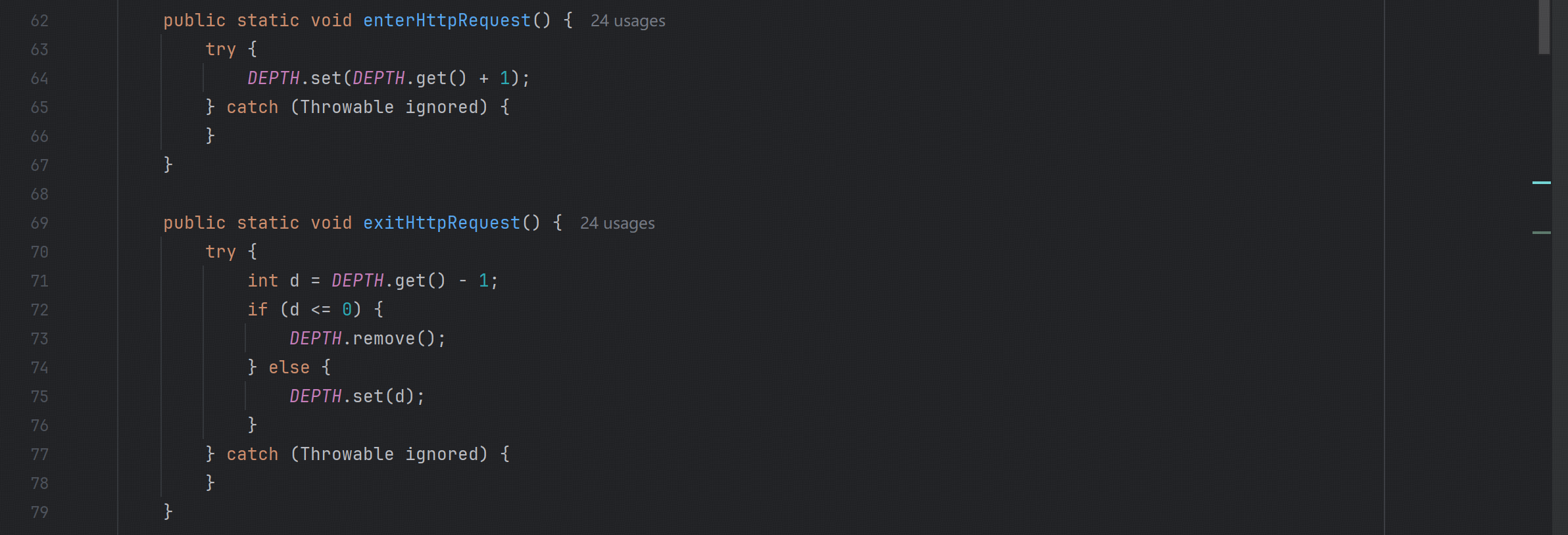

HttpContext 类提供 enterHttpRequest exitHttpRequest 方法，通过 DEPTH 常量是否大于 0 ，判断是否为外部 HTTP 请求。

跨线程方法，存在上下文丢失的问题。

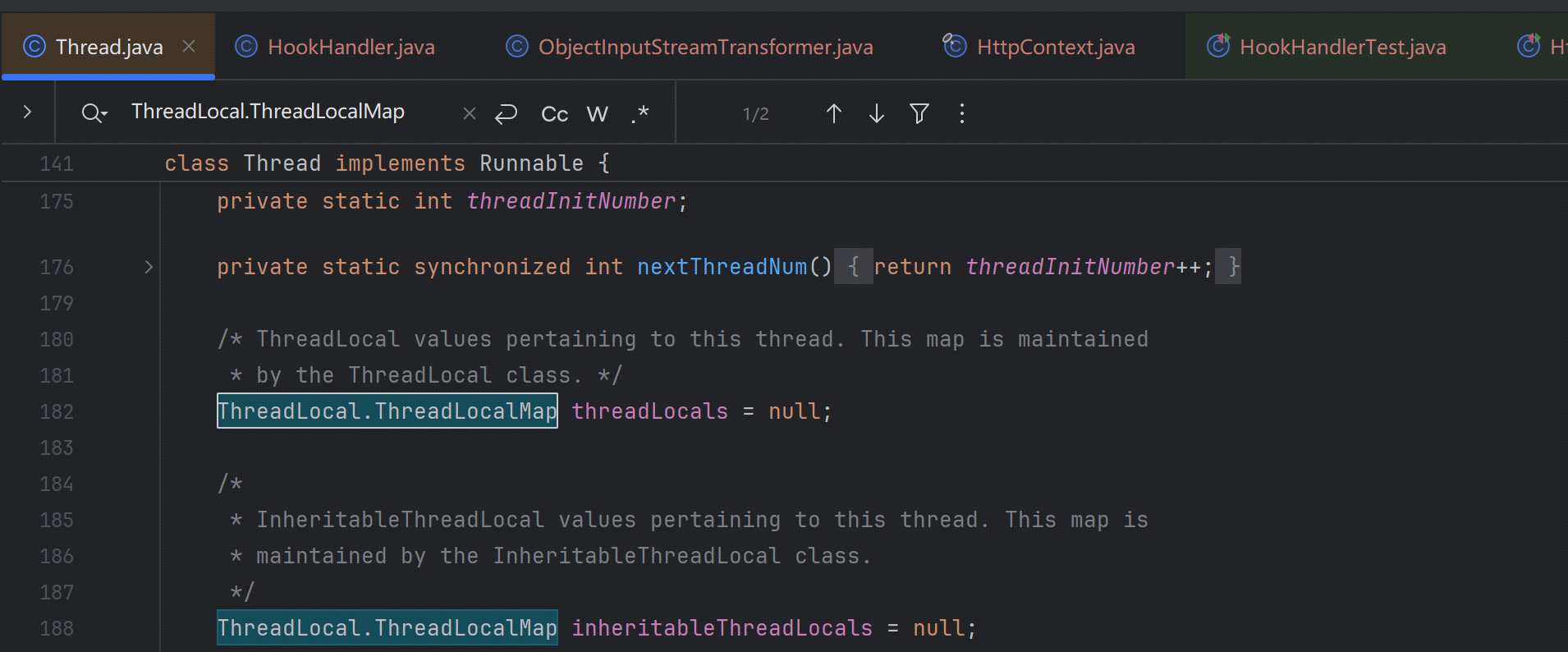

先讲 java.lang.Thread , 内部存在 threadLocals inheritableThreadLocals 两个结构一样的存储变量

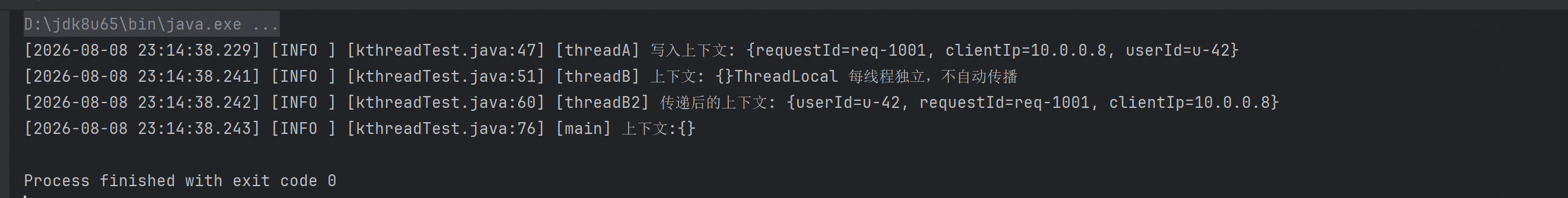

在 ThreadA 线程中，写入一些值，创建子线程 ThreadB 可以看到是无法访问 ThreadA 线程的上下文信息的，使用 onThreadSpawned(threadB2) 先登记子线程为待传递上下文的线程，可以将父线程 ThreadA 的上下文信息通过一些方法传递到子线程 ThreadB2 中。

import Log.log;

import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
import java.util.WeakHashMap;
import java.util.concurrent.CountDownLatch;

public class kthreadTest {
    /** 当前线程上下文键值表 */
    static final ThreadLocal<Map<String, String>> CTX = ThreadLocal.withInitial(HashMap::new);
    /** 待继承的子线程登记表：child -> 父线程上下文快照 */
    static final Map<Thread, Map<String, String>> PENDING = Collections.synchronizedMap(new WeakHashMap<>());
    /** 当前线程是否处于「继承」状态 */
    static final ThreadLocal<Boolean> INHERITED = ThreadLocal.withInitial(() -> false);
    /** onThreadSpawned：start() 钩子（父线程执行）——把子线程登记进 PENDING，值为父线程键值对快照 */
    static void onThreadSpawned(Thread child) {
        if (!CTX.get().isEmpty()) {
            PENDING.put(child, new HashMap<>(CTX.get()));
        }
    }
    /** enterInheritedContext：run() 入口钩子（子线程执行）——取出快照，重建到子线程自己的存储 */
    static boolean enterInheritedContext(Thread self) {
        Map<String, String> snapshot = PENDING.remove(self);
        if (snapshot != null) {
            CTX.get().putAll(snapshot); // 子线程本地重建：写自己的 ThreadLocal
            INHERITED.set(true);
            return true;
        }
        return false;
    }
    static void exitInheritedContext() {
        if (INHERITED.get()) {
            INHERITED.set(false);
            CTX.remove();
        }
    }

    public static void main(String[] args) throws Exception {
        final CountDownLatch done = new CountDownLatch(1);
        Thread threadA = new Thread(() -> {
            CTX.get().put("userId", "u-42");
            CTX.get().put("requestId", "req-1001");
            CTX.get().put("clientIp", "10.0.0.8");
            log.info("[threadA] 写入上下文: " + CTX.get());

            try {
                Thread threadB = new Thread(() -> {
                    log.info("[threadB] 上下文: " + CTX.get());
                });
                threadB.start();
                threadB.join();

                Thread threadB2 = new Thread(() -> {
                    boolean inherited = enterInheritedContext(Thread.currentThread()); // run() 入口钩子
                    try {
                        log.info("[threadB2] 传递后的上下文: " + CTX.get());
                    } finally {
                        exitInheritedContext(); // run() 出口钩子：清理
                    }
                });
                onThreadSpawned(threadB2); // start() 钩子：threadA 登记 threadB2 的快照
                threadB2.start();
                threadB2.join();
            } catch (Exception e) {
                e.printStackTrace();
            } finally {
                done.countDown();
            }
        });
        threadA.start();
        done.await();
        log.info("[main] 上下文:" + CTX.get() + " ");
    }
}
